5mol% MgO-doped LiNbO3 Wafers Nonlinear Optical and Electro-optic Materials Engineered for Superior Stability and Efficiency
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | CQT |
| 証明: | ISO:9001, ISO:14001 |
| モデル番号: | リチウムニオバート (LiNbO3) |
お支払配送条件:
| 最小注文数量: | 10個のPC |
|---|---|
| 価格: | 交渉可能 |

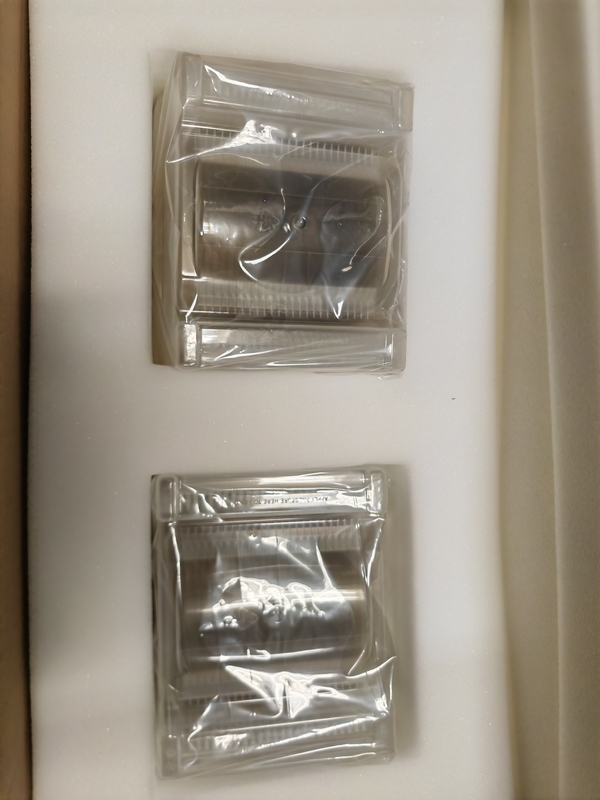

| パッケージの詳細: | 真空密封カセット瓶のパッケージ |
| 受渡し時間: | 1〜4週間 |
| 支払条件: | T/T |
| 供給の能力: | 20000 PCS/月 |
|
詳細情報 |
|||
| 材料: | LiNbO3ウエファー | アウト直径: | "2" "3" 4" |
|---|---|---|---|
| オリエンテーション: | X,Zなど | ドーピング: | 5% MgO:LN |
| 厚さ: | 250um 350um、500um | 表面仕上げ: | 単一の側面の光沢、二重側面の光沢 |
| 学年: | 光学等級 | 応用: | SAWフィルター,超音波変換器 |
| ハイライト: | MgO-doped LiNbO3 wafers,nonlinear optical piezoelectric wafers,electro-optic LiNbO3 wafers |
||
製品の説明
5mol% MgO-doped LiNbO3 Wafers Nonlinear Optical and Electro-optic Materials Engineered for Superior Stability and Efficiency
Elevate your laser systems and nonlinear optical devices with our 5mol% MgO-Doped Lithium Niobate (LiNbO₃) Wafers, engineered to deliver superior photorefractive resistance and thermal stability compared to undoped variants. By incorporating 5mol% magnesium oxide (MgO), these wafers significantly reduce optical damage thresholds, enabling reliable operation under high-intensity light conditions—ideal for frequency doubling, optical parametric oscillators (OPOs), and high-power laser modulators.
Our wafers feature ultra-low defect densities, precise crystal orientation (X-cut, Y-cut, or Z-cut), and exceptional surface finishes (Ra < 0.5 nm), ensuring minimal scattering losses and optimal coupling efficiency. The MgO doping also enhances electro-optic coefficients, making them perfect for high-speed modulators in telecommunication networks.
Available in customizable diameters (2"–6") and thicknesses, our wafers meet stringent industry standards for performance and durability. Backed by ISO-certified manufacturing and rigorous quality testing, they provide a cost-effective solution for demanding applications.
Unlock next-level performance. Choose our 5mol% MgO-doped LiNbO₃ Wafers for unmatched reliability and efficiency. Contact us today to transform your optoelectronic innovations.
|
Material |
3" 4" 6" 8" LN wafer (Saw/Optical grade) |
|
Orientation Cut |
Y64°, Y128°, YZ or Customized |
|
Surface finish |
single or double sides polish (DLP/SLP/ SSP/DSP all available ) |
|
Thickness |
0.18/0.25/0.35/0.50/1.00 + mm |
|
TTV |
< 1~5µm |
|
BOW |
± (25µm ~40um ) |
|
Warp |
<= 35µm |
|
LTV (5mmx5mm) |
<1.5 um |
|
PLTV(<0.5um) |
≥98% (5mm*5mm) with 2mm edge excluded |
|
Curie Temp |
1142°C±3°C |
|
Edge Rouding |
Compl't with SEMI M1.2@with GC800# .regular at C typed |
|
Orientation flats |
available, per request |
|
Polished side Ra |
Roughness Ra<=5A |
|
Back Side Criteria |
Roughness Ra:0.5-1.0µm GC#1000 |
|
Cracks, saw marks, stains |
None |
|
Single Domain |
Completed Polarization/Reduced |
FAQs:
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
Acceptance Check
- The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
- After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
- Please open the vacuum package in a clean room when the products are to be applied.
- If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
