詳細情報 |
|||
| 材料: | サファイア (Al2O3) クリスタル | タイプ: | 単結晶 |
|---|---|---|---|
| 色: | 白い、透明 | 直径: | "2" "3" 4" 6" |
| 表面: | DSP SSP | ヤングの係数（e）: | 335 GPa |
| 融点: | 2040の摂氏温度 | 業界: | 導かれた、光学ガラス、eli準備ができたウエファー |
| ハイライト: | sapphire wafer for piezoelectric devices,durable sapphire wafer technology,high-performance piezoelectric sapphire wafers |
||
製品の説明

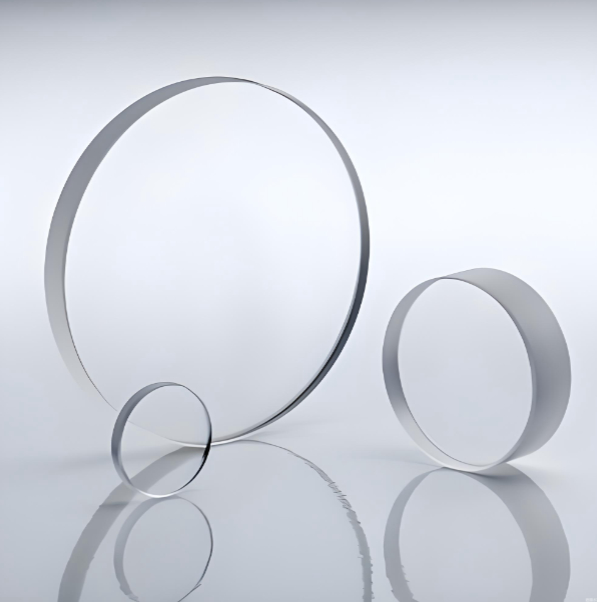

Elevate Your Technology with Our Sapphire Wafers The Perfect Combination of Durability and Performance
Elevate your technology with our premium Sapphire Wafers, engineered for excellence in LED, RF, and power electronics applications. Renowned for their exceptional thermal conductivity, optical transparency (95%+ transmittance from UV to IR), and chemical inertness, these wafers provide an unbeatable platform for device reliability and efficiency.
Crafted from ultra-pure, single-crystal sapphire (Al₂O₃), our wafers feature ultra-smooth surfaces (Ra < 0.3 nm) and precise thickness tolerances, minimizing defects and enhancing yield in epitaxial growth processes. Ideal for GaN-based LEDs, MEMS sensors, and high-frequency RF devices, they withstand extreme temperatures and corrosive environments, ensuring long-term performance.
Available in customizable diameters (2"–6"), orientations (C-plane, R-plane, M-plane), and polished grades, our Sapphire Wafers adapt seamlessly to your R&D and production needs. Backed by rigorous quality control and ISO-certified manufacturing, they deliver consistency and cost-efficiency at scale.
Step into a brighter future with Sapphire Wafers. Contact us today to unlock unmatched durability, clarity, and innovation for your next-generation devices.
OPTICAL PROPERTIES
|
Transmission |
0.17 to 5.5 um |
|
Refractive Index |
1.75449 (o) 1.74663 (e) at 1.06 um |
|
Reflection Loss |
at 1.06 microns (2 surfaces) for o-ray - 11.7%; for e-ray - 14.2% |
|
Absorption Index |
0.3 x 10-3 cm-1 at 2.4 um |
|
dN/dT |
13.7 x 10-6 at 5.4 um |
|
dn/dm = 0 |
1.5 um |
|
Orientation |
R-plane, C-plane, A-plane, M-plane or a specified orientation |
|
Orientation Tolerance |
± 0.3° |
|
Diameter |
2 inches, 3 inches, 4 inches, 6 inches, 8 inches or others |
|
Diameter Tolerance |
0.1mm for 2 inches, 0.2mm for 3 inches, 0.3mm for 4 inches, 0.5mm for 6 inches |
|
Thickness |
0.25mm, 0.33mm, 0.43mm, 0.65mm, 1mm or others; |
|
Thickness Tolerance |
25μm |
|
Primary Flat Length |
16.0±1.0mm for 2 inches, 22.0±1.0mm for 3 inches, 30.0±1.5mm for 4 inches, 47.5/50.0±2.0mm for 6 inches |
|
Primary Flat Orientation |
A-plane (1 1-2 0 ) ± 0.2°; C-plane (0 0-0 1 ) ± 0.2°, Projected C-Axis 45 +/- 2° |
|
TTV |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
BOW |
≤10µm for 2 inches, ≤15µm for 3 inches, ≤20µm for 4 inches, ≤25µm for 6 inches |
|
Front Surface |
Epi-Polished (Ra< 0.3nm for C-plane, 0.5nm for other orientations) |
|
Back Surface |
Fine ground (Ra=0.6μm~1.4μm) or Epi-polished |
|
Packaging |
Packaged in a class 100 clean room environment |
Acceptance Check
1. The product is fragile. We have adequately packed it and labeled it fragile. We deliver through excellent domestic and international express companies to ensure transportation quality.
2. After receiving the goods, please handle with care and check whether the outer carton is in good condition. Carefully open the outer carton and check whether the packing boxes are in alignment. Take a picture before you take them out.
3. Please open the vacuum package in a clean room when the products are to be applied.
4. If the products are found damaged during courier, please take a picture or record a video immediately. DO NOT take the damaged products out of the packaging box! Contact us immediately and we will solve the problem well.
